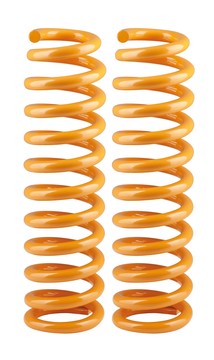

Ironman 4x4 produce a wide range of coil springs to suit a range of load ratings, all designed to maintain optimum ride height.
Coils springs produced by Ironman 4x4 undergo class leading manufacturing processes to ensure the highest possible quality, including:
CNC Cold Coiled -
All Ironman 4x4 coil springs are CNC Cold coiled to ensure perfect consistency and accuracy. The result of cold coiling means that springs are subjected to less heat during the manufacturing process to help maintain the materials properties and resulting in longer life.
Bar Peeled –
Coil spring steel is all bar peeled to ensure consistent material diameter before coiling. Bar peeling ensure exact material size is maintain and that it remains constant and free of flaws along the entire length of the steel used in the coils.
Shot Peened –
Shot peening manipulates the spring materials surface tension to reduce stress and will enhance the springs life.
Triple Scragged –
To minimize coil settling after installation, every Ironman 4x4 coil is fully compressed to a solid coil state three times.
Progressive and Linear Rate –
Based off the original vehicle manufacturers preference accordance with the original vehicle setup. Progressive springs increase spring rate as the spring compresses, linear springs maintain a consistent rate throughout its range.
Powder Coated –
All Ironman 4x4 coil springs are electro-static powder-coated for a gleaming and lasting appearance.
Quantity Required: 1
Estimated Lift: 35mm
Additional Load: 0-50kg
Package Details: Pair
Additional Notes: Vehicles with independent suspension must maintain a minimum of 60mm downward suspension travel.
When Ordering: Select springs in accordance with your vehicles additional load.
Material Diameter: 18.5mm
Free Height: 355mm
End I/D: 80mm
Spring Rate (N/mm): 152
Spring Rate (lbf/in): 869
Notes: Some vehicles may experience driveline vibration on acceleration after raising suspension, use centre bearing spacer kit 1194K to reduce the vibration to a satisfactory level.
