DESCRIPTION

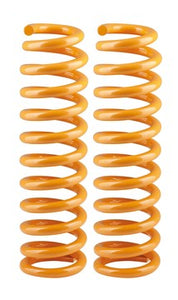

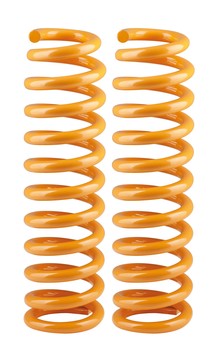

All Ironman 4x4 coil springs are designed to provide a safe, comfortable ride while also providing additional ground clearance.
Ironman 4x4 coil springs are CNC cold wound and bar peeled for maximum reliability and consistency, every coil spring is ‘shot-blasted’ to ensure long life, preset to its solid height and load tested to avoid spring sag.
All springs are electro-static powder-coated for a gleaming appearance. Available in raised height and perfectly matched to Ironman 4x4 Shock Absorbers.
SPECIFICATIONS
Quantity Required: 1
Estimated Lift: 45mm
Additional Load: 300kg - GVM
Package Details: Pair
Additional Notes: Vehicles with independent suspension must maintain a minimum of 60mm downward suspension travel.
When Ordering: Select springs in accordance with your vehicles additional load.
Material Diameter: 18
Free Height: 515/520
End I/D: 515/520
Spring Rate (N/mm): 56
Spring Rate (Ibf/in): 320
