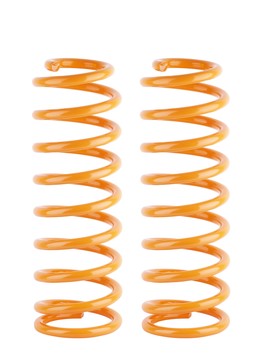

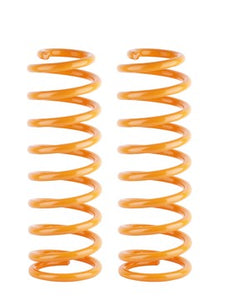

All Ironman 4x4 coil springs are designed to provide a safe, comfortable ride while also providing additional ground clearance.
Ironman 4x4 coil springs are CNC cold wound and bar peeled for maximum reliability and consistency, every coil spring is ‘shot-blasted’ to ensure long life, preset to its solid height and load tested to avoid spring sag.
All springs are electro-static powder-coated for a gleaming appearance. Available in raised height and perfectly matched to Ironman 4x4 Shock Absorbers.
Quantity Required: 1
Estimated Lift: 40mm
Additional Load: 50-110kg
Package Details: Pair
Additional Notes: Vehicles with independent suspension must maintain a minimum of 60mm downward suspension travel.
When Ordering: Select springs in accordance with your vehicles additional load.
Material Diameter: 15.5mm
Free Height: 463mm
End I/D: 80/103
Spring Rate (N/mm): 57
Spring Rate (Ibf/in): 326
